Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

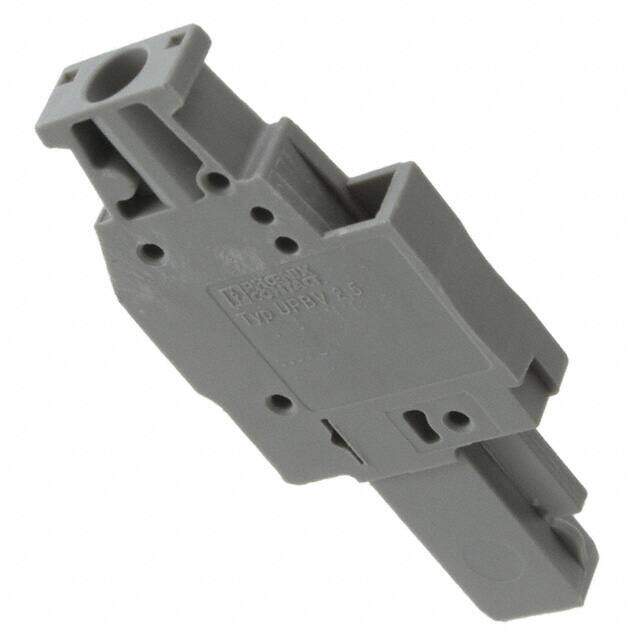

Description DIN Rail Terminal Blocks UPBV 2.5/1-M
PDF
/
Buying Options
Total Price: USD $1.38
Unit Price: USD $1.382979
≥1 USD $1.382979
≥10 USD $1.30469
≥100 USD $1.230847
≥500 USD $1.161174
≥1000 USD $1.095449
Inventory: 2735
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 5.2mm
Length 21mm
Height 32.2mm

Technical

Stripping Length 9mm
Screw Size M3
Current - IEC 24A
Wire Gauge or Range - mm2 0.14-4mm2
Plug Wire Entry 90°
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 500V
Wire Gauge or Range - AWG 12-26 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 20A
Number of Levels 1
Voltage 600V
Approval Agency UL
Termination Style Screw
Current Rating 24A
Reach Compliance Code unknown
Insulation Height 1.850 47.00mm
Pitch 5.2mm
HTS Code 8536.69.40.40
Voltage - Rated 500V
Color Gray
Type Plug, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Interlocking (Side)
Series CLIPLINE COMBI UPBV
Published 2007
Packaging Bulk

Physical

Weight 2.100133kg
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 7 Weeks
