3043404
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

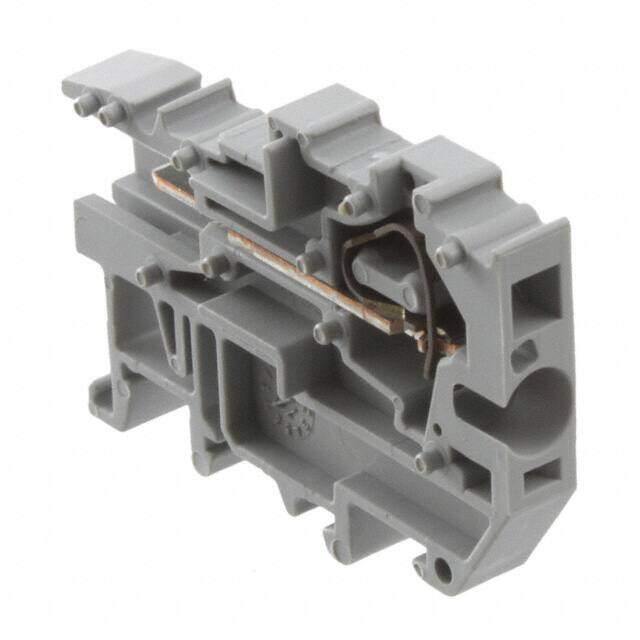

DIN Rail Terminal Blocks SC 4-NS/ 1-L
PDF
/
Buying Options
Total Price: USD $1.55
Unit Price: USD $1.5488
≥1 USD $1.5488
≥10 USD $1.50832
≥100 USD $1.40976
≥500 USD $1.296944
≥1000 USD $1.198314
≥3000 USD $1.141906
Inventory: 60
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail/Channel
Housing Material Polyamide (PA), Nylon
Weight 6.679998g
Technical
Packaging Bulk
Published 2011
Series CLIPLINE COMBI SC
Feature Coupling, Interlocking (Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Receptacle, Male Pins
Color Gray
Voltage - Rated 800V
HTS Code 8536.69.40.40
Insulation Height 1.697 43.10mm
Current Rating 32A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 600V
Number of Levels 1
Current 30A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 10 AWG
Wire Gauge or Range - AWG 10-28 AWG
Voltage - IEC 800V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.08-6mm2
Wire Strip Length 10mm
Current - IEC 32A
Dimensions
Length 48.6mm
Width 6.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
