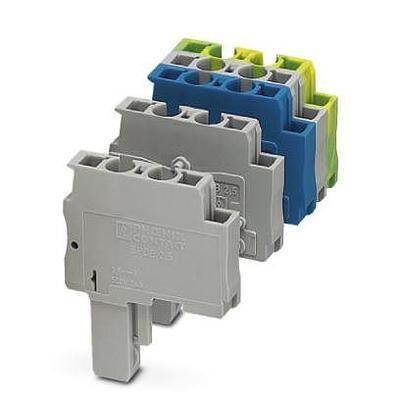

3043255 image
Favorite
3043255 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description DIN Rail Terminal Blocks SPDB 2.5/ 1-R
PDF
/
Buying Options
Total Price: USD $3.99
Unit Price: USD $3.988092
≥1 USD $3.988092
≥10 USD $3.762345
≥100 USD $3.549387
≥500 USD $3.348477
≥1000 USD $3.158944
Inventory: 9208
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 5.570001g

Technical

Packaging Bulk
Published 2010
Series CLIPLINE COMBI SPDB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type IDC, IDT
Type Plug, Female Sockets
Number of Positions 1 (Mate), 2 (Input)
Color Gray
Voltage - Rated 500V
HTS Code 8536.69.40.40
Insulation Height 1.535 39.00mm
Current Rating 24A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 600V
Number of Levels 1 (Mate), 2 (Input)
Current 5A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 28 AWG
Voltage - UL 300V
Wire Gauge or Range - AWG 12-28 AWG
Current - UL 20A
Positions Per Level 1
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.08-4mm2
Wire Strip Length 10mm

Dimensions

Height 39mm
Length 32.7mm
Width 5.2mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
