3043200
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

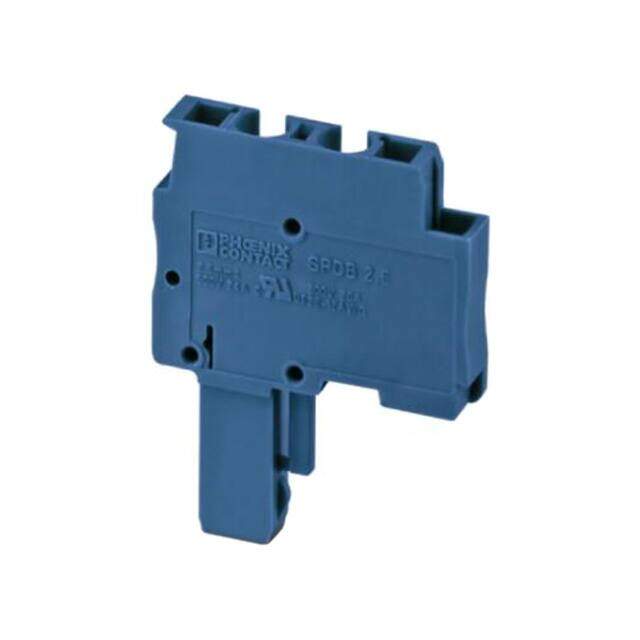

DIN Rail Terminal Blocks SPDB 2.5/ 1-L BU
PDF
/
Buying Options
Total Price: USD $3.76
Unit Price: USD $3.7576
≥1 USD $3.7576
≥10 USD $3.65288
≥100 USD $3.41352
≥500 USD $3.140456
≥1000 USD $2.901501
≥3000 USD $2.76496
Inventory: 285
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 5.000005g
Technical
Packaging Bulk
Published 2011
Series CLIPLINE COMBI SPDB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type IDC, IDT
Type Plug, Female Sockets
Number of Positions 1 (Mate), 2 (Input)
Color Blue
Voltage - Rated 500V
HTS Code 8536.69.40.40
Insulation Height 1.535 39.00mm
Current Rating 24A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 600V
Number of Levels 1 (Mate), 2 (Input)
Current 5A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 12 AWG
Voltage - UL 300V
Wire Gauge or Range - AWG 12-28 AWG
Current - UL 20A
Positions Per Level 1
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.08-4mm2
Wire Strip Length 10mm
Dimensions
Length 32.7mm
Width 5.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
