3043093
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

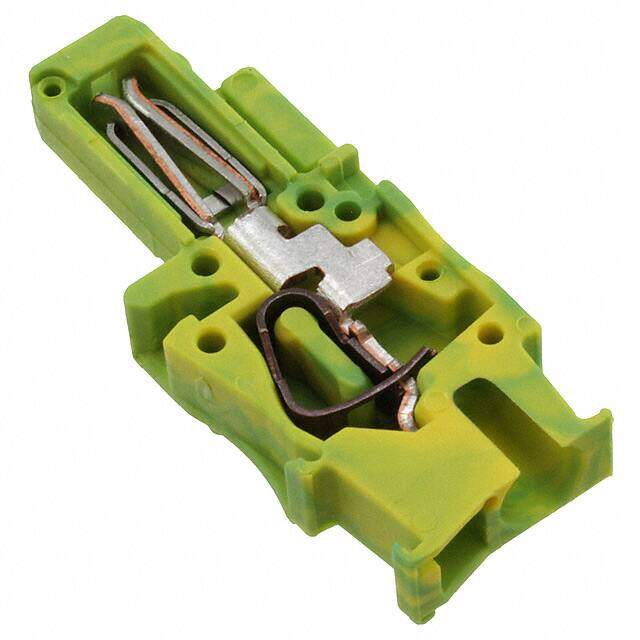

DIN Rail Terminal Blocks SP 2.5/ 1-R GNYE
PDF
/
Buying Options
Total Price: USD $1.95
Unit Price: USD $1.9536
≥1 USD $1.9536
≥10 USD $1.89816
≥100 USD $1.77408
≥500 USD $1.632136
≥1000 USD $1.507968
≥3000 USD $1.437005
Inventory: 122
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 3.38g
Technical
Packaging Bulk
Published 2011
Series CLIPLINE ST-COMBI SP
Feature Interlocking (Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type IDC, IDT
Type Plug, Female Sockets
Color Green, Yellow
Number of Rows 1
Voltage - Rated 500V
Additional Feature STANDARD: UL 94V-0, PA, SAFETY APPROVAL: GL; LR; RS; UL; VDE
HTS Code 8536.69.40.40
Insulation Height 1.535 39.00mm
Current Rating 24A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 600V
Number of Levels 1
Current 5A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 12 AWG
Voltage - UL 300V
Number of Decks 1
Wire Gauge or Range - AWG 12-28 AWG
Current - UL 20A
Number of Ways 1
Safety Approval BV; CB; DNV; CSA; CUL; GOST
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.08-4mm2
Wire Strip Length 10mm
Wire Cross Section 4 mm2
Fastening Method SPRING LOADED
Dimensions
Height 39mm
Length 15.8mm
Width 5.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
