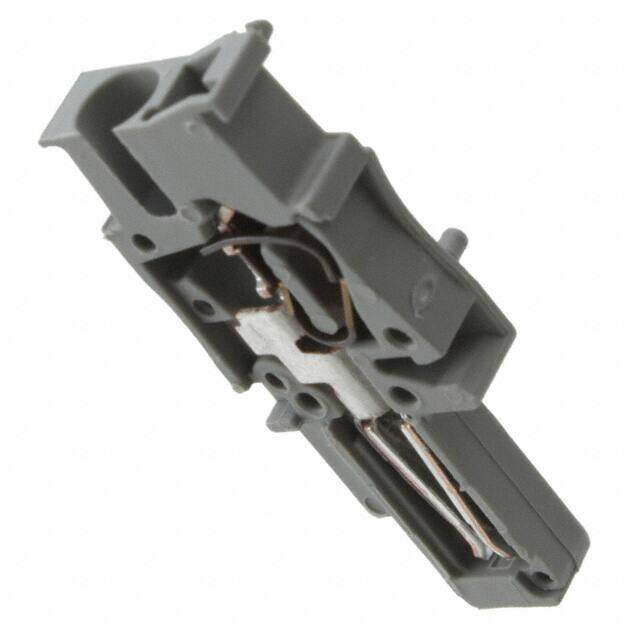

3043077 image
Favorite
3043077 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Conn Spring Cage 1 POS 24A
PDF
/
Buying Options
Total Price: USD $1.95
Unit Price: USD $1.9536
≥1 USD $1.9536
≥10 USD $1.89816
≥100 USD $1.77408
≥500 USD $1.632136
≥1000 USD $1.507968
≥3000 USD $1.437005
Inventory: 78
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 5.2mm
Length 15.8mm
Height 39mm

Technical

Fastening Method SPRING LOADED
Wire Cross Section 4 mm2
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.08-4mm2
Plug Wire Entry 180°
Safety Approval UL; VDE; CSA
Wire Gauge or Range - AWG 12-28 AWG
Number of Decks 1
Voltage - UL 300V
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 28 AWG
Current 20A
Number of Levels 1
Max Current Rating 24A
Max Supply Voltage 500V
Voltage 600V
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 24A
Insulation Height 1.535 39.00mm
Depth 5.2mm
HTS Code 8536.69.40.40
Voltage - Rated 500V
Number of Rows 1
Color Gray
Type Plug, Female Sockets
Connector Type IDC, IDT
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Interlocking (Side)
Series CLIPLINE ST-COMBI SP
Published 2011
Packaging Bulk

Physical

Weight 3.38g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 7 Weeks
