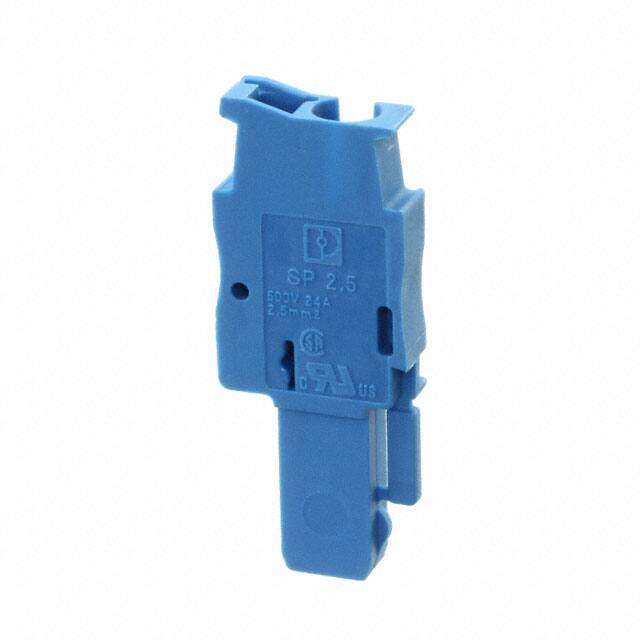

3043022 image
Favorite
3043022 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description DIN Rail Terminal Blocks SP 2.5/ 1-L BU
PDF
/
Buying Options
Total Price: USD $1.11
Unit Price: USD $1.1088
≥1 USD $1.1088
Inventory: 33
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 5.2mm
Length 15.8mm
Height 39mm

Technical

Fastening Method SPRING LOADED
Wire Cross Section 4 mm2
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.08-4mm2
Plug Wire Entry 180°
Safety Approval BV; CB; DNV; CSA; CUL; GOST
Number of Ways 1
Current - UL 20A
Wire Gauge or Range - AWG 12-28 AWG
Number of Decks 1
Voltage - UL 300V
Wire Gauge (Min) 28 AWG
Wire Gauge (Max) 28 AWG
Current 5A
Number of Levels 1
Voltage 600V
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 24A
Insulation Height 1.535 39.00mm
HTS Code 8536.69.40.40
Additional Feature STANDARD: UL 94V-0, PA, SAFETY APPROVAL: GL; LR; RS; UL; VDE
Voltage - Rated 500V
Number of Rows 1
Color Blue
Type Plug, Female Sockets
Connector Type IDC, IDT
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Interlocking (Side)
Series CLIPLINE ST-COMBI SP
Published 2010
Packaging Bulk

Physical

Weight 3.029997g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 4 Weeks
