3042942
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

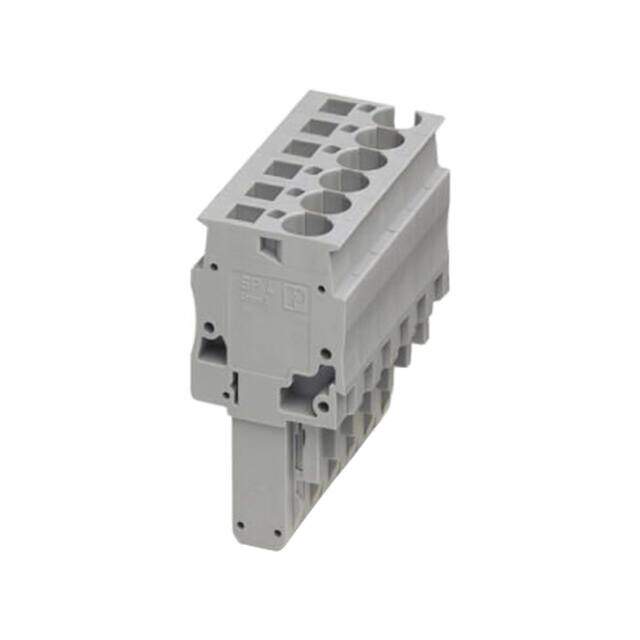

DIN Rail Terminal Blocks SP 4/ 6
PDF
/
Buying Options
Total Price: USD $13.1
Unit Price: USD $13.104112
≥1 USD $13.104112
≥10 USD $12.362367
≥100 USD $11.662606
≥500 USD $11.002469
≥1000 USD $10.379683
Inventory: 7774
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 28.349523g
Technical
Packaging Bulk
Published 2011
Series CLIPLINE COMBI SP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Connector Type IDC, IDT
Type Plug, Female Sockets
Number of Positions 6
Color Gray
Voltage - Rated 800V
Insulation Height 1.634 41.50mm
Current Rating 32A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 600V
Number of Levels 1
Current 30A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 28 AWG
Wire Gauge or Range - AWG 10-28 AWG
Voltage - IEC 800V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.08-6mm2
Wire Strip Length 10mm
Current - IEC 32A
Dimensions
Length 21mm
Width 37.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
