3042887
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

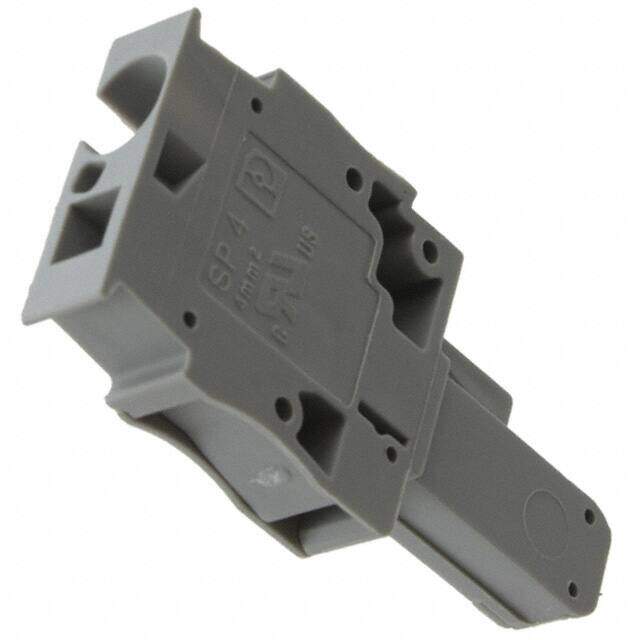

DIN Rail Terminal Blocks SP 4/ 1
PDF
/
Buying Options
Total Price: USD $2.16
Unit Price: USD $2.156
≥1 USD $2.156
Inventory: 84
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 6.2mm
Length 21mm
Height 41.5mm
Technical
Current - IEC 32A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.08-6mm2
Plug Wire Entry 180°
Voltage - IEC 800V
Wire Gauge or Range - AWG 10-28 AWG
Wire Gauge (Min) 10 AWG
Wire Gauge (Max) 28 AWG
Current 30A
Number of Levels 1
Voltage 600V
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 32A
Insulation Height 1.634 41.50mm
HTS Code 8536.69.40.40
Voltage - Rated 800V
Color Gray
Type Plug, Female Sockets
Connector Type IDC, IDT
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series CLIPLINE COMBI SP
Published 2011
Packaging Bulk
Physical
Weight 4.639995g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
