3042832
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

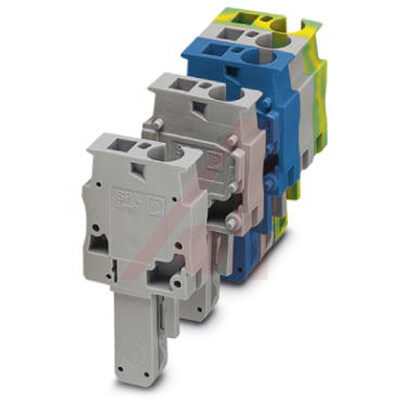

TERM BLOCK PLUG 1POS STR
PDF
/
Buying Options
Total Price: USD $2.8
Unit Price: USD $2.79621
≥1 USD $2.79621
≥10 USD $2.637927
≥100 USD $2.488616
≥500 USD $2.347751
≥1000 USD $2.214859
Inventory: 6702
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2011
Series CLIPLINE ST-COMBI SP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Female Sockets
Color Green, Yellow
Number of Rows 1
Additional Feature STANDARD: 94V-0, PA
HTS Code 8536.69.40.40
Insulation Height 1.634 41.50mm
Termination Style Screwless - Spring Cage, Tension Clamp
Number of Levels 1
Voltage - UL 600V
Number of Decks 1
Wire Gauge or Range - AWG 10-28 AWG
Current - UL 30A
Voltage - IEC 800V
Number of Ways 1
Safety Approval CB; CSA; CUL; EAC; UL; VDE
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.08-6mm2
Wire Strip Length 10mm
Current - IEC 32A
Rated Current 32A
Wire Cross Section 6 mm2
Fastening Method SPRING LOADED
Rated Voltage 800V
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
