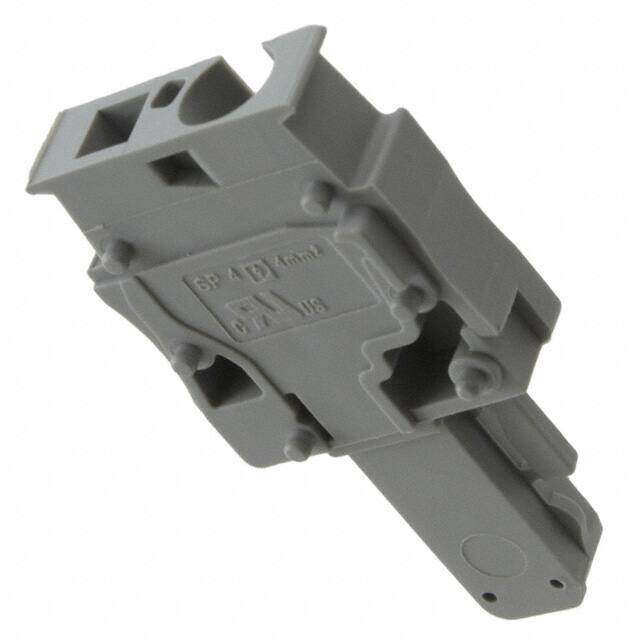

3042780
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Spring Cage 1 POS 32A
PDF
/
Buying Options
Total Price: USD $3.16
Unit Price: USD $3.164816
≥1 USD $3.164816
≥10 USD $2.985679
≥100 USD $2.81667
≥500 USD $2.657242
≥1000 USD $2.506827
Inventory: 6622
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 6.2mm
Length 21mm
Height 41.5mm
Technical
Fastening Method SPRING LOADED
Wire Cross Section 6 mm2
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.08-6mm2
Plug Wire Entry 180°
Safety Approval CB; CSA; CUL; GOST; UL; VDE
Number of Ways 1
Voltage - IEC 800V
Wire Gauge or Range - AWG 10-28 AWG
Number of Decks 1
Wire Gauge (Min) 10 AWG
Wire Gauge (Max) 28 AWG
Current 30A
Number of Levels 1
Max Current Rating 32A
Max Supply Voltage 800V
Voltage 600V
Approval Agency CB, CSA, UL, VDE, cULus
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 32A
Insulation Height 1.634 41.50mm
Depth 6.2mm
HTS Code 8536.69.40.40
Additional Feature STANDARD: UL 94V-0, PA
Voltage - Rated 800V
Number of Rows 1
Color Gray
Type Plug, Female Sockets
Connector Type IDC, IDT
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series CLIPLINE ST-COMBI SP
Published 2011
Packaging Bulk
Physical
Weight 4.489997g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 7 Weeks
