3042777
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

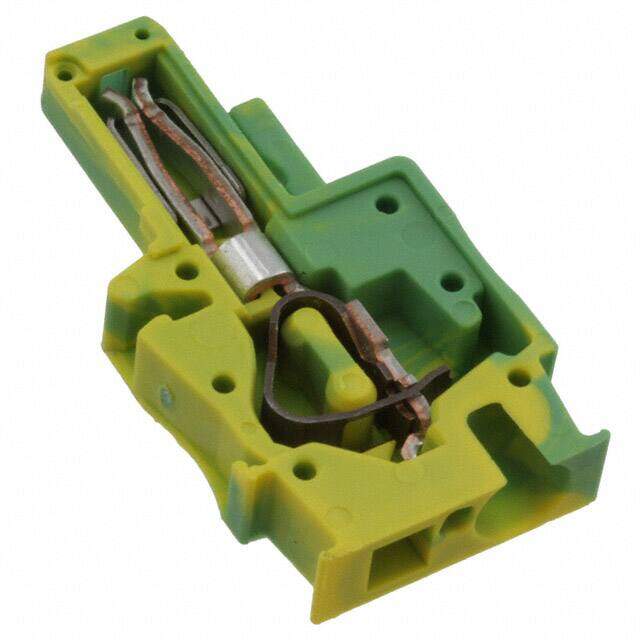

DIN Rail Terminal Blocks SP 4/ 1-L GNYE
PDF
/
Buying Options
Total Price: USD $2.16
Unit Price: USD $2.156
≥1 USD $2.156
Inventory: 64
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 4.329993g
Technical
Packaging Bulk
Published 2010
Series CLIPLINE ST-COMBI SP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type IDC, IDT
Type Plug, Female Sockets
Color Green, Yellow
Number of Rows 1
Voltage - Rated 800V
Additional Feature STANDARD: UL 94V-0, PA
HTS Code 8536.69.40.40
Insulation Height 1.634 41.50mm
Current Rating 32A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 600V
Number of Levels 1
Current 30A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 10 AWG
Number of Decks 1
Wire Gauge or Range - AWG 10-28 AWG
Voltage - IEC 800V
Number of Ways 1
Safety Approval CB; CSA; CUL; GOST; UL; VDE
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.08-6mm2
Wire Strip Length 10mm
Current - IEC 32A
Wire Cross Section 6 mm2
Fastening Method SPRING LOADED
Dimensions
Height 41.5mm
Length 21mm
Width 6.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
