3042612
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

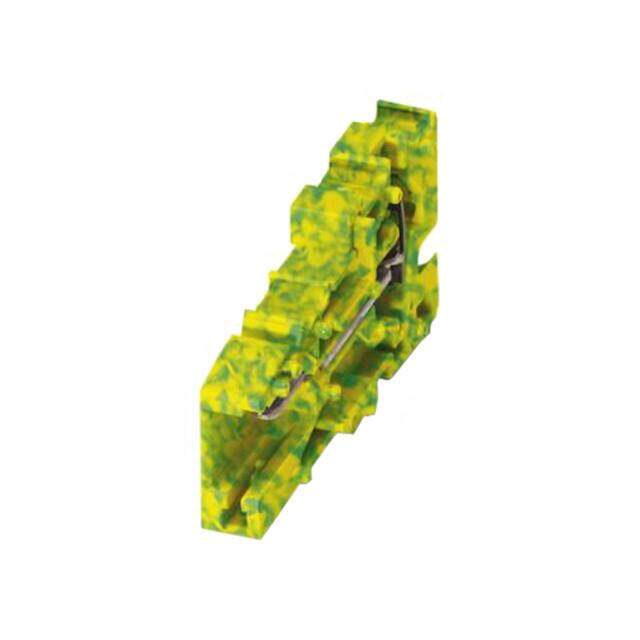

DIN Rail Terminal Blocks SC 4/ 1-L GNYE
PDF
/
Buying Options
Total Price: USD $1.55
Unit Price: USD $1.5488
≥1 USD $1.5488
≥10 USD $1.50832
≥100 USD $1.40976
≥500 USD $1.296944
≥1000 USD $1.198314
≥3000 USD $1.141906
Inventory: 197
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 5.510013g
Technical
Packaging Bulk
Published 2011
Series CLIPLINE COMBI SC
Feature Coupling, Interlocking (Side)
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screwless
ECCN Code EAR99
Type Receptacle, Male Pins
Color Green, Yellow
Voltage - Rated 800V
HTS Code 8536.69.40.40
Insulation Height 0.878 22.30mm
Current Rating 32A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 600V
Number of Levels 1
Current 30A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 10 AWG
Wire Gauge or Range - AWG 10-28 AWG
Voltage - IEC 800V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.08-6mm2
Wire Strip Length 10mm
Current - IEC 32A
Dimensions
Length 48.6mm
Width 6.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
