3042298
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

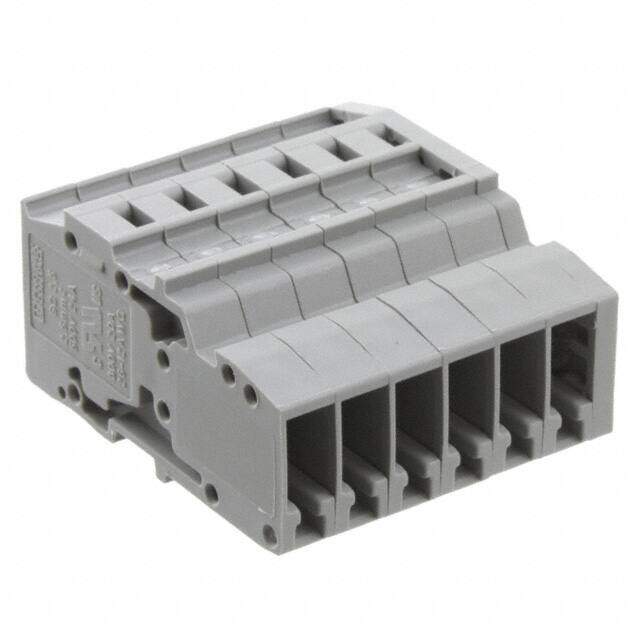

DIN Rail Terminal Blocks SC 2.5/6
PDF
/
Buying Options
Total Price: USD $5.1
Unit Price: USD $5.0952
≥1 USD $5.0952
Inventory: 105
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 17.360001g
Technical
Packaging Bulk
Published 2011
Series CLIPLINE COMBI SC
Feature Coupling
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Receptacle, Male Pins
Number of Positions 6
Color Gray
Voltage - Rated 500V
Insulation Height 0.740 18.80mm
Current Rating 24A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 300V
Number of Levels 1
Current 20A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 500V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.08-4mm2
Wire Strip Length 10mm
Current - IEC 24A
Dimensions
Height 18.8mm
Length 37.2mm
Width 31.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
