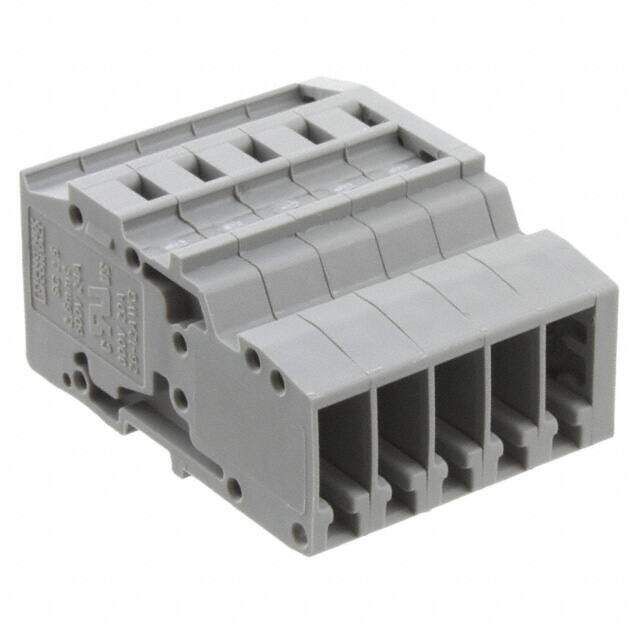

3042285
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks COMBI coupling,5-POS spring-cage connect
PDF
/
Buying Options
Total Price: USD $6.49
Unit Price: USD $6.4944
≥1 USD $6.4944
≥10 USD $6.31312
≥100 USD $5.9004
≥500 USD $5.428368
≥1000 USD $5.015331
≥3000 USD $4.77935
Inventory: 76
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 14.199993g
Technical
Packaging Bulk
Published 2011
Series CLIPLINE COMBI SC
Feature Coupling
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Receptacle, Male Pins
Number of Positions 5
Color Gray
Voltage - Rated 500V
Insulation Height 0.740 18.80mm
Current Rating 24A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 300V
Number of Levels 1
Current 20A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 28 AWG
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 500V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.08-4mm2
Wire Strip Length 10mm
Current - IEC 24A
Dimensions
Height 18.8mm
Length 37.2mm
Width 26mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
