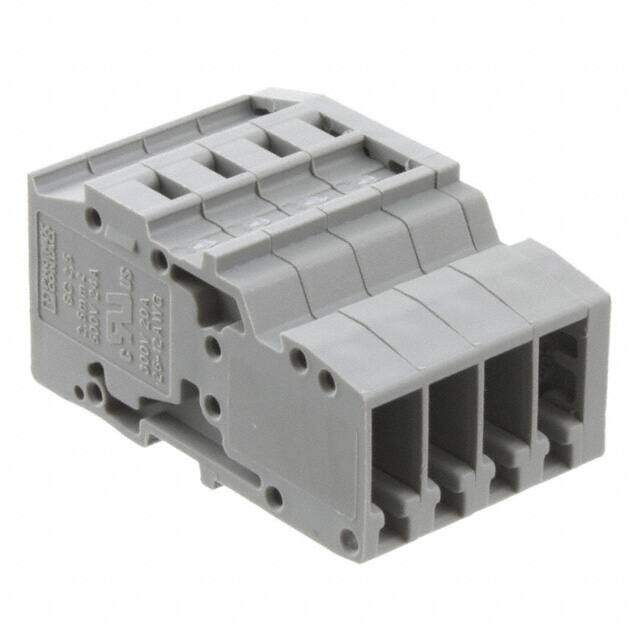

3042272
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks SC 2.5/4 FREE HANGING
PDF
/
Buying Options
Total Price: USD $5.52
Unit Price: USD $5.5176
≥1 USD $5.5176
≥10 USD $5.36448
≥100 USD $5.01336
≥500 USD $4.612344
≥1000 USD $4.261347
≥3000 USD $4.06083
Inventory: 116
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 20.8mm
Length 37.2mm
Technical
Current - IEC 24A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.08-4mm2
Plug Wire Entry 180°
Voltage - IEC 500V
Wire Gauge or Range - AWG 12-26 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 20A
Number of Levels 1
Voltage 300V
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 24A
Insulation Height 0.740 18.80mm
Voltage - Rated 500V
Color Gray
Number of Positions 4
Type Receptacle, Male Pins
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Coupling
Series CLIPLINE COMBI SC
Published 2011
Packaging Bulk
Physical
Weight 11.92999g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 10 Weeks
