3042191
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

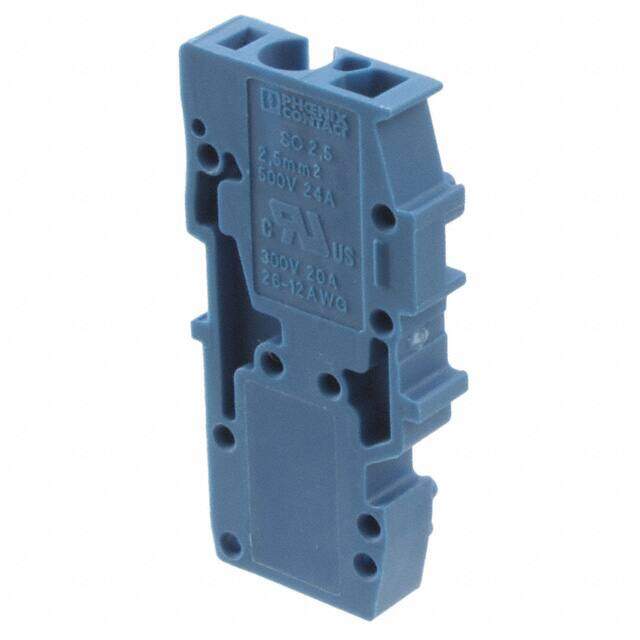

DIN Rail Terminal Blocks SC 2.5/1-L-BU
PDF
/
Buying Options
Total Price: USD $1.37
Unit Price: USD $1.3728
≥1 USD $1.3728
≥10 USD $1.33936
≥100 USD $1.25136
≥500 USD $1.151216
≥1000 USD $1.063674
≥3000 USD $1.013602
Inventory: 652
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 5.2mm
Length 37.2mm
Height 21.8mm
Technical
Current - IEC 24A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.08-4mm2
Plug Wire Entry 180°
Voltage - IEC 500V
Wire Gauge or Range - AWG 12-26 AWG
Wire Gauge (Min) 28 AWG
Wire Gauge (Max) 26 AWG
Current 20A
Number of Levels 1
Voltage 300V
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 24A
Insulation Height 0.858 21.80mm
Voltage - Rated 500V
Color Blue
Type Receptacle, Male Pins
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Coupling, Interlocking (Side)
Series CLIPLINE COMBI SC
Published 2010
Packaging Bulk
Physical
Weight 2.960002g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 6 Weeks
