3041817
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

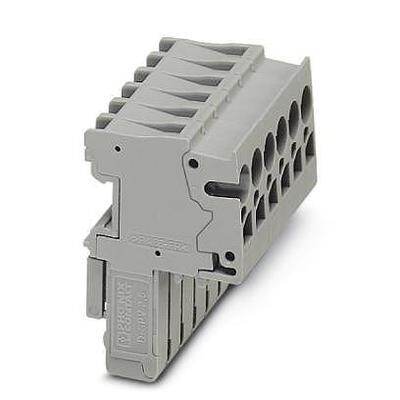

Plug SPV 2,5/11 3041817 Phoenix Contact
PDF
/
Buying Options
Total Price: USD $13.95
Unit Price: USD $13.947596
≥1 USD $13.947596
≥10 USD $13.158102
≥100 USD $12.413312
≥500 USD $11.710677
≥1000 USD $11.047805
Inventory: 6337
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Technical
Packaging Bulk
Published 2016
Series CLIPLINE COMBI SPV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Type Plug, Female Sockets
Number of Positions 11
Color Gray
Voltage - Rated 6kV
Current Rating 24A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 600V
Number of Levels 1
Current 20A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 500V
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.08-4mm2
Current - IEC 24A
Dimensions
Width 5.2mm
Compliance
RoHS Status RoHS Compliant
