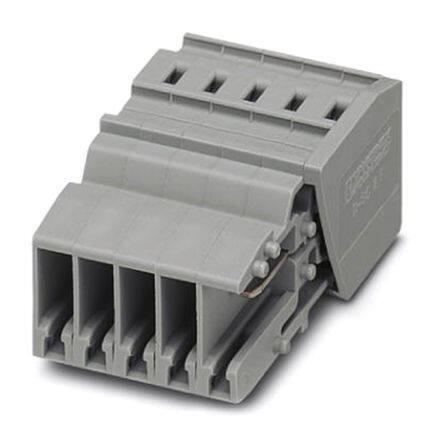

3041448
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
DIN Rail Terminal Blocks SC 2.5/15
PDF
/
Inventory: 1411
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 78mm
Length 37.2mm
Height 18.8mm
Technical
Current - IEC 24A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.08-4mm2
Plug Wire Entry 180°
Voltage - IEC 500V
Wire Gauge or Range - AWG 12-26 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 20A
Number of Levels 1
Voltage 300V
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 24A
Insulation Height 0.740 18.80mm
HTS Code 8536.69.40.40
Voltage - Rated 500V
Color Gray
Number of Positions 15
Type Receptacle, Male Pins
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Coupling
Series CLIPLINE COMBI SC
Published 2011
Packaging Bulk
Physical
Weight 41.980002g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 6 Weeks
