RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

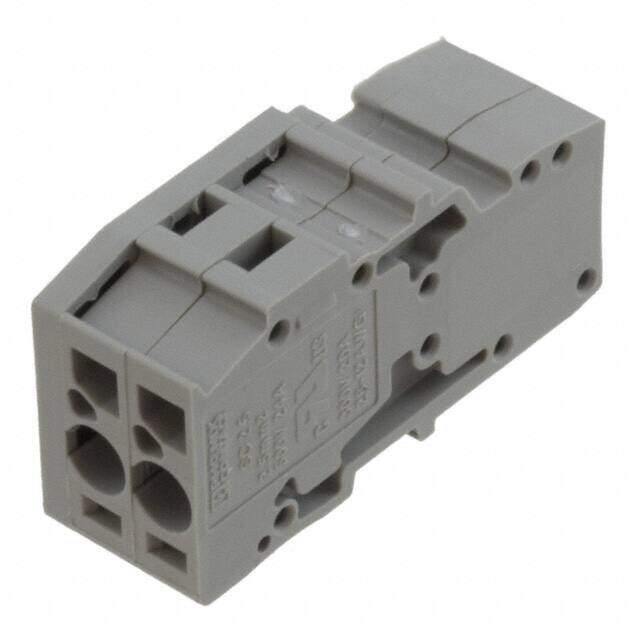

Description DIN Rail Terminal Blocks SC 2.5/2
PDF
/
Buying Options
Total Price: USD $3.57
Unit Price: USD $3.5728
≥1 USD $3.5728
≥10 USD $3.47424
≥100 USD $3.2472
≥500 USD $2.987424
≥1000 USD $2.760138
≥3000 USD $2.63025
Inventory: 89
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 10.4mm
Length 37.2mm

Technical

Current - IEC 24A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.08-4mm2
Plug Wire Entry 180°
Voltage - IEC 500V
Wire Gauge or Range - AWG 12-26 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 20A
Number of Levels 1
Voltage 300V
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 24A
Insulation Height 0.740 18.80mm
Voltage - Rated 500V
Color Gray
Number of Positions 2
Type Receptacle, Male Pins
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Coupling
Series CLIPLINE COMBI SC
Published 2011
Packaging Bulk

Physical

Weight 6.639997g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 4 Weeks
