3041082
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

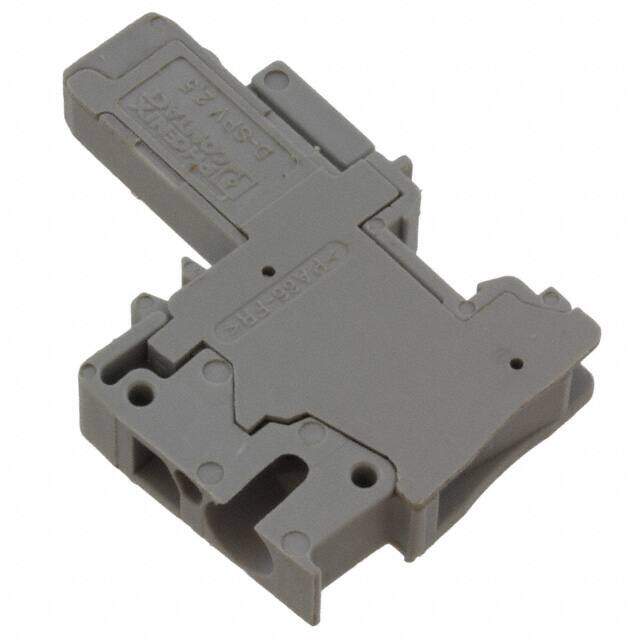

DIN Rail Terminal Blocks SPV 2.5/1-R
PDF
/
Buying Options
Total Price: USD $1.88
Unit Price: USD $1.8832
≥1 USD $1.8832
≥10 USD $1.8304
≥100 USD $1.71072
≥500 USD $1.57388
≥1000 USD $1.454112
≥3000 USD $1.385683
Inventory: 200
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 499.858792g
Technical
Packaging Bulk
Published 2011
Series CLIPLINE ST-COMBI SPV
Feature Interlocking (Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Color Gray
Voltage - Rated 500V
HTS Code 8536.69.40.40
Pitch 5.2mm
Orientation Straight
Insulation Height 1.339 34.00mm
Current Rating 24A
Termination Style Screwless - Spring Cage, Tension Clamp
Approval Agency CB, UL, VDE
Voltage 600V
Max Current Rating 24A
Number of Levels 1
Current 20A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 28 AWG
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 500V
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.08-4mm2
Wire Strip Length 10mm
Dimensions
Height 34mm
Length 23.4mm
Width 5.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
