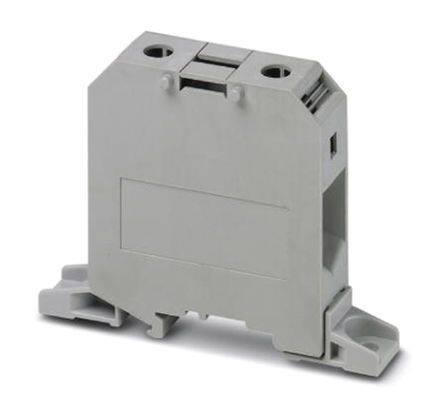

3040478
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
DIN Rail Terminal Blocks SPDB 2.5/ 8
PDF
/
Buying Options
Total Price: USD $50.61
Unit Price: USD $50.609669
≥1 USD $50.609669
≥200 USD $20.193715
≥500 USD $19.518884
≥1000 USD $19.185408
Inventory: 1862
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 39.790002g
Technical
Packaging Bulk
Published 2011
Series CLIPLINE COMBI SPDB
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Connector Type IDC, IDT
Type Plug, Female Sockets
Number of Positions 8 (Mate), 16 (Input)
Color Gray
Voltage - Rated 500V
Insulation Height 1.535 39.00mm
Current Rating 24A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 300V
Number of Levels 1 (Mate), 2 (Input)
Current 20A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 28 AWG
Wire Gauge or Range - AWG 12-28 AWG
Voltage - IEC 500V
Positions Per Level 8
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.08-4mm2
Wire Strip Length 10mm
Current - IEC 24A
Dimensions
Length 32.7mm
Width 41.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
