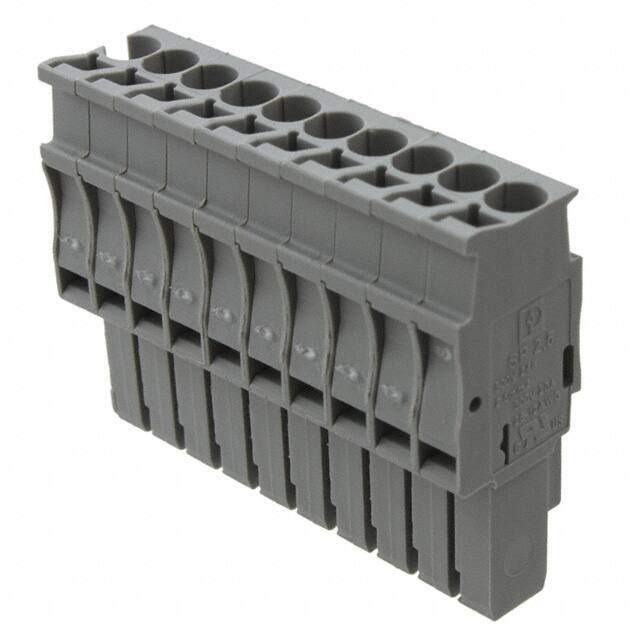

3040342 image
Favorite
3040342 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks COMBI plugs,10-POS spring-cage connect
PDF
/
Buying Options
Total Price: USD $11.2
Unit Price: USD $11.2024
≥1 USD $11.2024
Inventory: 60
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 52mm
Length 15.8mm
Height 39mm

Technical

Number of Positions Per Level 10
Current - IEC 24A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.08-4mm2
Plug Wire Entry 180°
Wire Gauge or Range - AWG 12-28 AWG
Voltage - UL 300V
Wire/Cable Gauge 12 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 28 AWG
Current 20A
Number of Levels 1
Voltage 600V
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 24A
Reach Compliance Code unknown
Insulation Height 1.535 39.00mm
HTS Code 8536.69.40.40
Voltage - Rated 500V
Color Gray
Type Plug, Female Sockets
Connector Type IDC, IDT
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series CLIPLINE COMBI SP
Published 2011
Packaging Bulk

Physical

Weight 29.369993g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 7 Weeks
