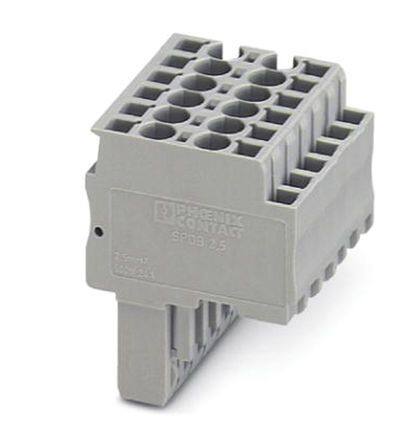

3040339 image
Favorite
3040339 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description DIN Rail Terminal Blocks SP 2.5/ 9
PDF
/
Inventory: 5887
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 5.2mm
Length 15.8mm

Technical

Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.08-4mm2
Plug Wire Entry 180°
Current - UL 20A
Wire Gauge or Range - AWG 12-28 AWG
Voltage - UL 300V
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 28 AWG
Current 5A
Number of Levels 1
Voltage 600V
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 24A
Insulation Height 1.535 39.00mm
Depth 9.04mm
Voltage - Rated 500V
Color Gray
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 9
Type Plug, Female Sockets
Connector Type IDC, IDT
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series CLIPLINE COMBI SP
Published 2011
Packaging Bulk

Physical

Weight 28.349523g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 4 Weeks
