3040326
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

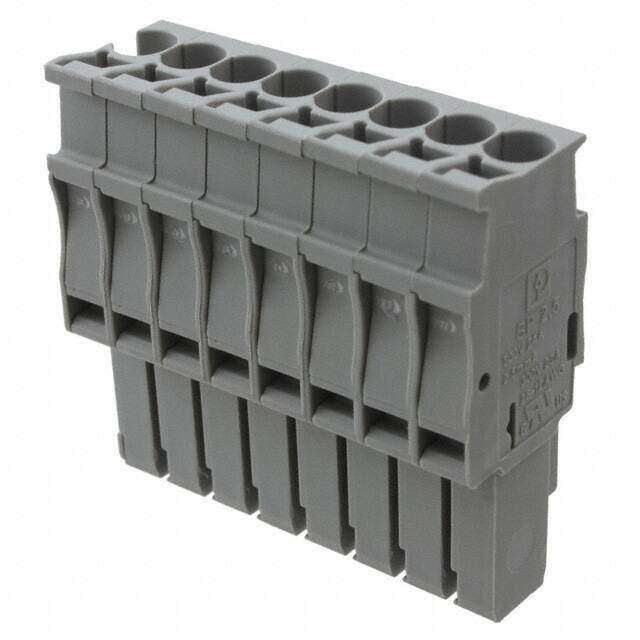

DIN Rail Terminal Blocks SP 2.5/ 8
PDF
/
Buying Options
Total Price: USD $11.26
Unit Price: USD $11.2552
≥1 USD $11.2552
≥10 USD $10.94896
≥100 USD $10.23264
≥500 USD $9.414064
≥1000 USD $8.697744
≥3000 USD $8.288474
Inventory: 110
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 23.700003g
Technical
Packaging Bulk
Published 2011
Series CLIPLINE COMBI SP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type IDC, IDT
Type Plug, Female Sockets
Number of Positions 8
Color Gray
Voltage - Rated 500V
Insulation Height 1.535 39.00mm
Current Rating 24A
Termination Style Screwless - Spring Cage, Tension Clamp
Approval Agency CB, CSA, UL, VDE
Voltage 600V
Number of Levels 1
Current 20A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 28 AWG
Wire/Cable Gauge 12 AWG
Voltage - UL 300V
Wire Gauge or Range - AWG 12-28 AWG
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.08-4mm2
Wire Strip Length 10mm
Current - IEC 24A
Dimensions
Height 39mm
Length 15.8mm
Width 41.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
