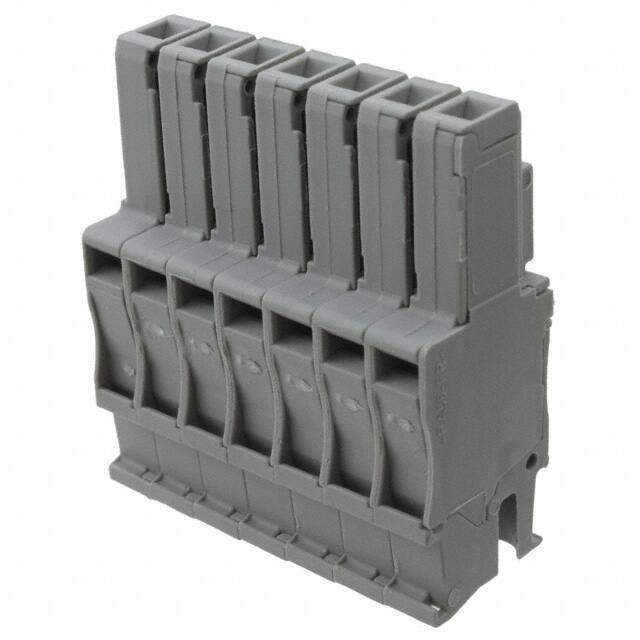

3040313
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
DIN Rail Terminal Blocks SP 2.5/ 7
PDF
/
Buying Options
Total Price: USD $9.93
Unit Price: USD $9.9264
≥1 USD $9.9264
≥10 USD $9.65272
≥100 USD $9.02088
≥500 USD $8.29928
≥1000 USD $7.667757
≥3000 USD $7.306939
Inventory: 148
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 21.33999g
Technical
Packaging Bulk
Published 2011
Series CLIPLINE COMBI SP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type IDC, IDT
Type Plug, Female Sockets
Number of Positions 7
Color Gray
Voltage - Rated 500V
HTS Code 8536.69.40.40
Orientation Straight
Insulation Height 1.535 39.00mm
Current Rating 24A
Termination Style Screwless - Spring Cage, Tension Clamp
Number of Contacts 7
Voltage 600V
Max Current Rating 24A
Number of Levels 1
Current 20A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 12 AWG
Voltage - UL 300V
Wire Gauge or Range - AWG 12-28 AWG
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.08-4mm2
Wire Strip Length 10mm
Dimensions
Height 39mm
Length 15.8mm
Width 36.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
