3040300
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

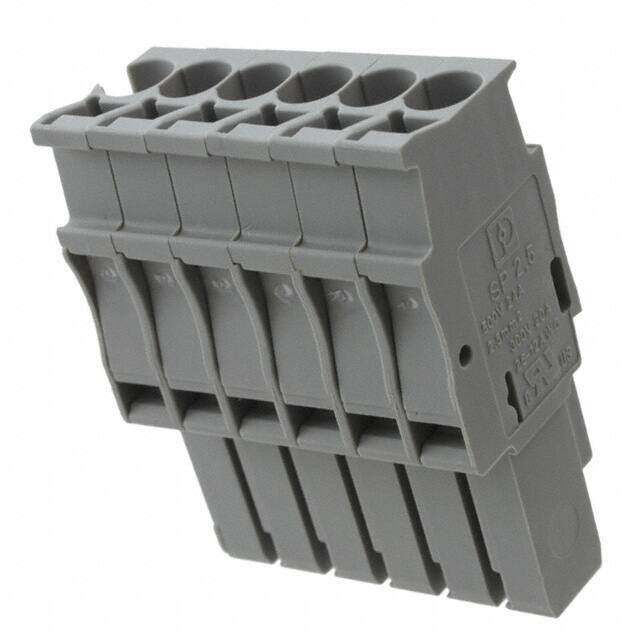

DIN Rail Terminal Blocks SP 2.5/ 6
PDF
/
Buying Options
Total Price: USD $8.61
Unit Price: USD $8.6064
≥1 USD $8.6064
≥10 USD $8.37232
≥100 USD $7.82496
≥500 USD $7.199016
≥1000 USD $6.651216
≥3000 USD $6.338235
Inventory: 79
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 17.889995g
Technical
Packaging Bulk
Published 2010
Series CLIPLINE COMBI SP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type IDC, IDT
Type Plug, Female Sockets
Color Gray
Voltage - Rated 500V
Insulation Height 1.535 39.00mm
Current Rating 24A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 600V
Number of Levels 1
Current 20A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 28 AWG
Wire/Cable Gauge 12 AWG
Voltage - UL 300V
Wire Gauge or Range - AWG 12-28 AWG
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.08-4mm2
Wire Strip Length 10mm
Current - IEC 24A
Number of Positions Per Level 6
Dimensions
Height 39mm
Length 15.8mm
Width 31.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
