3040290
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

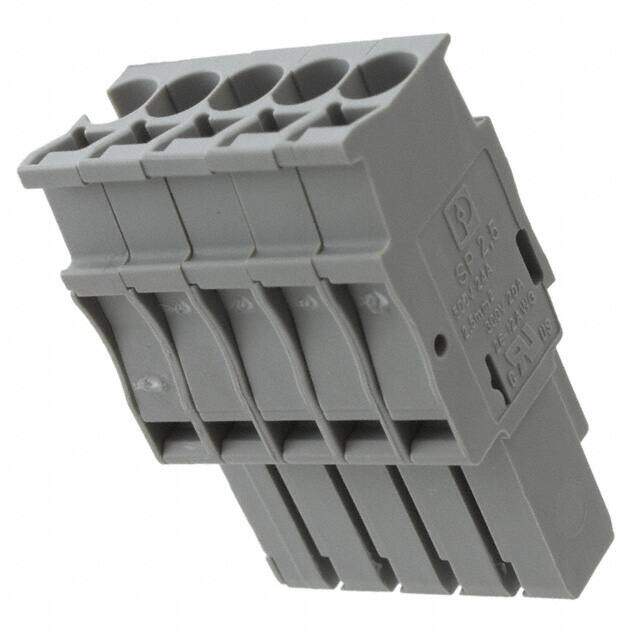

DIN Rail Terminal Blocks SP 2.5/ 5
PDF
/
Buying Options
Total Price: USD $7.27
Unit Price: USD $7.2688
≥1 USD $7.2688
≥10 USD $7.06728
≥100 USD $6.60528
≥500 USD $6.07684
≥1000 USD $5.614506
≥3000 USD $5.350294
Inventory: 82
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 15.03001g
Technical
Packaging Bulk
Published 2010
Series CLIPLINE COMBI SP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type IDC, IDT
Type Plug, Female Sockets
Number of Positions 5
Color Gray
Voltage - Rated 500V
Depth 6.6mm
Insulation Height 1.535 39.00mm
Reach Compliance Code unknown
Current Rating 24A
Termination Style Screwless - Spring Cage, Tension Clamp
Voltage 600V
Number of Levels 1
Current 20A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 12 AWG
Voltage - UL 300V
Wire Gauge or Range - AWG 12-28 AWG
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.08-4mm2
Wire Strip Length 10mm
Current - IEC 24A
Dimensions
Height 39mm
Length 15.8mm
Width 26mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
