RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

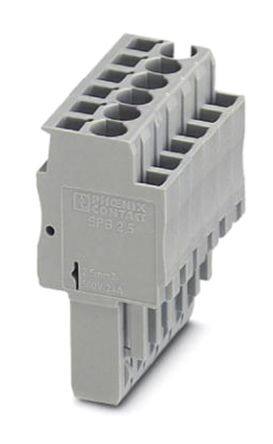

Description DIN Rail Terminal Blocks SPB 2.5/13
PDF
/
Buying Options
Total Price: USD $57.1
Unit Price: USD $57.104586
≥1 USD $57.104586
≥200 USD $22.78538
≥500 USD $22.023898
≥1000 USD $21.648408
Inventory: 1211
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 67.6mm
Length 20mm

Technical

Current - IEC 24A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.08-4mm2
Plug Wire Entry 180°
Voltage - IEC 500V
Wire Gauge or Range - AWG 12-28 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 28 AWG
Current 20A
Number of Levels 1
Voltage 300V
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 24A
Insulation Height 1.535 39.00mm
Voltage - Rated 500V
Color Gray
Number of Positions 13
Type Plug, Female Sockets
Connector Type IDC, IDT
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series CLIPLINE COMBI SPB
Published 2011
Packaging Bulk

Physical

Weight 44.999992g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 6 Weeks
