3040122
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

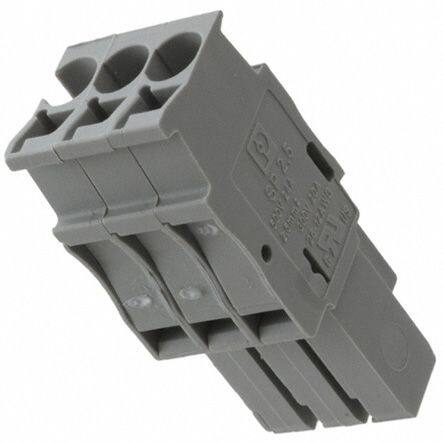

DIN Rail Terminal Blocks SPB 2.5/3
PDF
/
Buying Options
Total Price: USD $5.42
Unit Price: USD $5.416188
≥1 USD $5.416188
≥10 USD $5.109605
≥100 USD $4.820386
≥500 USD $4.547535
≥1000 USD $4.290125
Inventory: 5940
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 15.6mm
Length 20mm
Height 39mm
Technical
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.08-4mm2
Plug Wire Entry 180°
Current - UL 20A
Wire Gauge or Range - AWG 12-28 AWG
Voltage - UL 300V
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 28 AWG
Current 5A
Number of Levels 1
Voltage 600V
Termination Style Screwless - Spring Cage, Tension Clamp
Current Rating 24A
Insulation Height 1.535 39.00mm
Depth 6.6mm
Voltage - Rated 500V
Color Gray
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Number of Positions 3
Type Plug, Female Sockets
Connector Type IDC, IDT
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series CLIPLINE COMBI SPB
Published 2011
Packaging Bulk
Physical
Weight 10.770012g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
