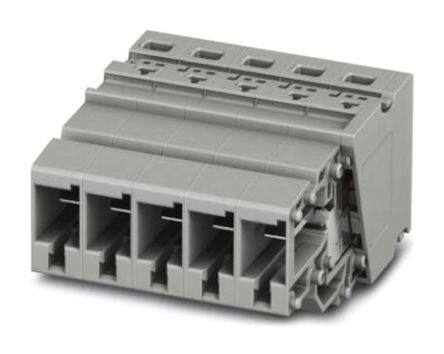

3000699 image
Favorite
3000699 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Phoenix Contact Connector, 7 Way/Pole, Push In Terminals, 0.510 mm, Polyamide, 1000 V
PDF
/
Inventory: 1152
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon

Technical

Packaging Bulk
Published 2015
Series CLIPLINE COMBI PT
Part Status Active
Type Plug, Blade Pins
Number of Positions 7
Color Gray
Voltage - Rated 1kV
Pitch 0.323 8.20mm
Insulation Height 0.972 24.70mm
Current Rating 41A
Termination Style Screwless - Leg Spring, Push-In Spring
Number of Levels 1
Voltage - UL 600V
Wire Gauge or Range - AWG 8-20 AWG
Current - UL 40A
Voltage - IEC 1000V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.5-10mm2
Wire Strip Length 12mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
