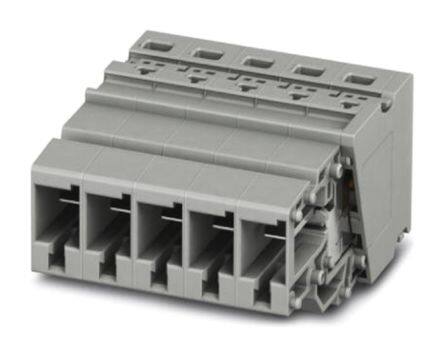

3000695 image
Favorite
3000695 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description CLIPLINE COMBI PT RoHS Compliant 2015 Polyamide Terminal Block Plug, Blade Pins 8-20AWG 180° 40A 1000V
PDF
/
Inventory: 1146
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Wire Strip Length 12mm
Wire Gauge or Range - mm2 0.5-10mm2
Plug Wire Entry 180°
Voltage - IEC 1000V
Current - UL 40A
Wire Gauge or Range - AWG 8-20 AWG
Voltage - UL 600V
Number of Levels 1
Termination Style Screwless - Leg Spring, Push-In Spring
Current Rating 41A
Insulation Height 0.972 24.70mm
Pitch 0.323 8.20mm
Voltage - Rated 1kV
Color Gray
Number of Positions 4
Type Plug, Blade Pins
Part Status Active
Series CLIPLINE COMBI PT
Published 2015
Packaging Bulk

Physical

Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)

Supply Chain

Factory Lead Time 6 Weeks
