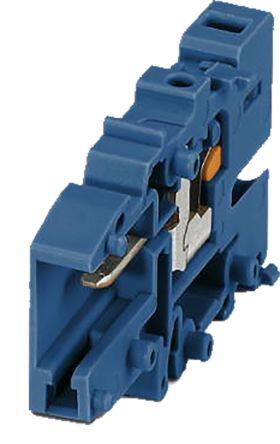

3000654
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBI RECEPTACLE CONNECTION METH
PDF
/
Buying Options
Total Price: USD $1.49
Unit Price: USD $1.486619
≥1 USD $1.486619
≥10 USD $1.40247
≥100 USD $1.323088
≥500 USD $1.248186
≥1000 USD $1.177534
Inventory: 1813
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Current - IEC 24A
Wire Strip Length 8-10mm
Wire Gauge or Range - mm2 0.14-4mm2
Plug Wire Entry 180°
Voltage - IEC 500V
Current - UL 20A
Wire Gauge or Range - AWG 12-26 AWG
Voltage - UL 300V
Number of Levels 1
Termination Style Screwless - Leg Spring, Push-In Spring
Insulation Height 1.614 41.00mm
HTS Code 8536.69.40.40
Color Blue
Type Plug, Blade Pins
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series CLIPLINE COMBI PT
Published 2016
Packaging Bulk
Operating Temperature -60°C~100°C
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Supply Chain
Factory Lead Time 6 Weeks
