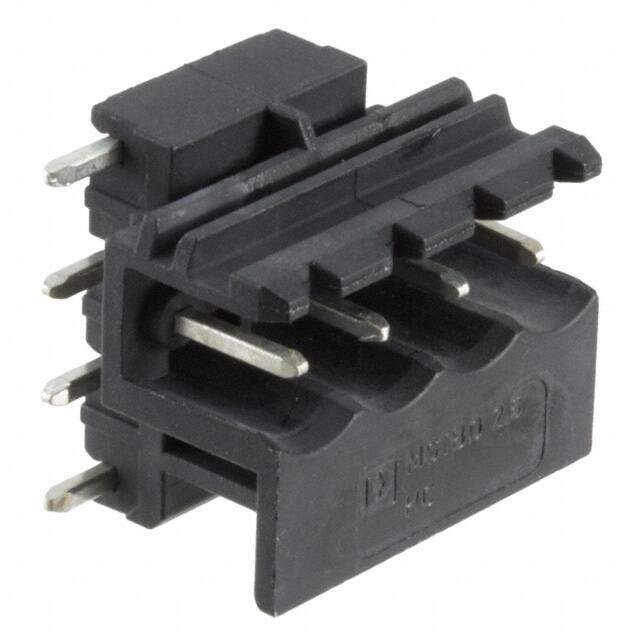

2909002 image
Favorite
2909002 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 4 Pos 5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $4.82
Unit Price: USD $4.8224
≥1 USD $4.8224
≥10 USD $4.61736
≥100 USD $4.416896
≥500 USD $4.296512
≥1000 USD $4.01544
≥3000 USD $3.694222
Inventory: 6081
Minimum: 1
-
+

Technical Details

Technical

Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (2 Side)
Color Black
Number of Rows 1
Gender Male
Voltage - Rated 250V
Pitch 0.197 5.00mm
Orientation Right Angle
Depth 5mm
Insulation Height 0.709 18.00mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Pbfree Code yes
Series COMBICON MSTBO
Published 2011
Packaging Bulk
Number of Positions Per Level 4
Header Orientation 90°, Right Angle
Safety Approval UL; VDE; CSA
Number of Ways 4
Voltage - IEC 400V
Current - UL 16A
Number of Decks 1
Wire Gauge (Min) 30 AWG
Wire Gauge (Max) 12 AWG
Current 12A
Number of Levels 1
Max Current Rating 12A

Physical

Weight 2.679994g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Free Hanging, Through Hole

Supply Chain

Factory Lead Time 7 Weeks

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 19.95mm
Length 5mm
Height 18mm
