2907787
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

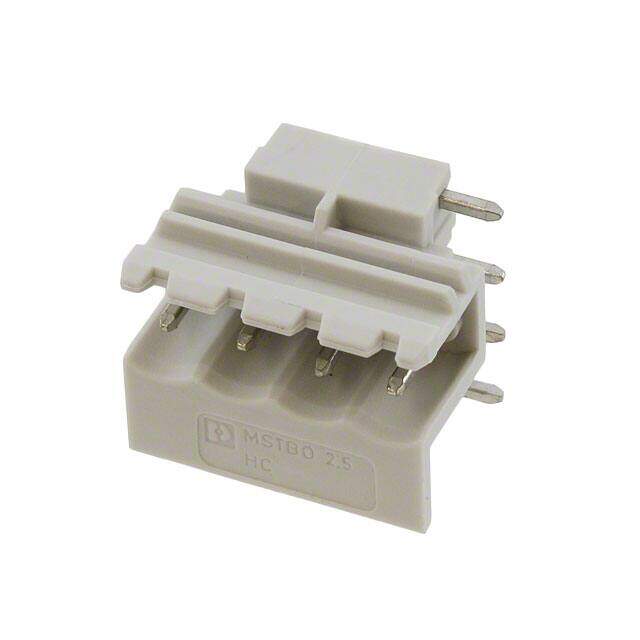

Pluggable Terminal Blocks 4 Pos 5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $4.82
Unit Price: USD $4.8224
≥1 USD $4.8224
≥10 USD $4.61736
≥100 USD $4.416896
≥500 USD $4.296512
≥1000 USD $4.01544
≥3000 USD $3.694222
Inventory: 830
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Silver
Mount Free Hanging, Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 2.829991g
Technical
Packaging Bulk
Published 2006
Series COMBICON MSTBO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (2 Side)
Color Gray
Voltage - Rated 250V
Pitch 0.197 5.00mm
Orientation Right Angle
Insulation Height 0.709 18.00mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Solder
Housing Color Grey
Voltage 300V
Max Current Rating 12A
Number of Levels 1
Current 12A
Current - UL 16A
Voltage - IEC 400V
Header Orientation 90°, Right Angle
Number of Positions Per Level 4
Dimensions
Height 18mm
Length 14.65mm
Width 19.95mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
