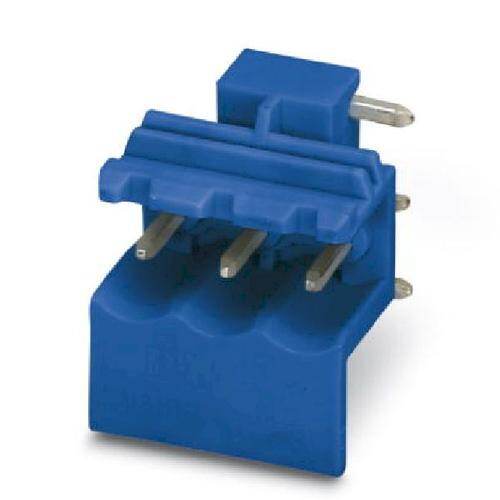

2854733
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pin enclosure - PCB MSTBO Total number of pins 3 Phoenix Contact 2854733 Contact spacing: 5 mm 50 pc(s)
PDF
/
Inventory: 5250
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Weight 1.850005g
Technical
Packaging Bulk
Published 2011
Series COMBICON MSTBO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 3
Color Blue
Voltage - Rated 250V
Pitch 0.197 5.00mm
Insulation Height 0.709 18.00mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Number of Levels 1
Current 16A
Voltage - IEC 400V
Header Orientation 90°, Right Angle
Current - IEC 12A
Dimensions
Height 14.95mm
Length 14.65mm
Width 16.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
