2697204
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

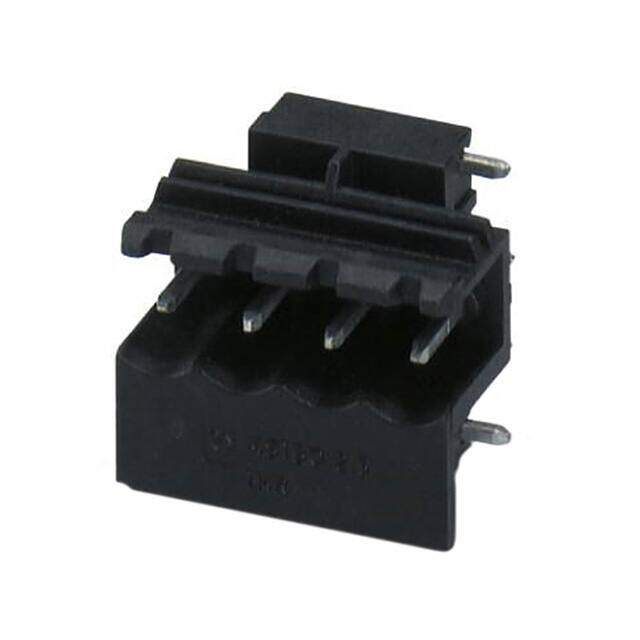

Terminal block; PCB; Header; Male Pins; Shrouded (2 Side); 4 position; 12A; 400V; Solder
PDF
/
Buying Options
Total Price: USD $3.66
Unit Price: USD $3.6608
≥1 USD $3.6608
Inventory: 598
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 19.95mm
Length 19.95mm
Height 18mm
Technical
Header Orientation 90°, Right Angle
Number of Ways 4
Voltage - IEC 400V
Number of Decks 1
Current 12A
Number of Levels 1
Max Current Rating 16A
Voltage 300V
Termination Style Solder
Current Rating 16A
Insulation Height 0.709 18.00mm
Depth 18mm
Orientation Right Angle
Pitch 0.197 5.00mm
Voltage - Rated 250V
Number of Rows 1
Color Black
Number of Positions 4
Type Header, Male Pins, Shrouded (2 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBO
Packaging Tape & Reel (TR)
Physical
Weight 7.31001g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Free Hanging
Contact Plating Silver
Supply Chain
Factory Lead Time 4 Weeks
