2278351
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

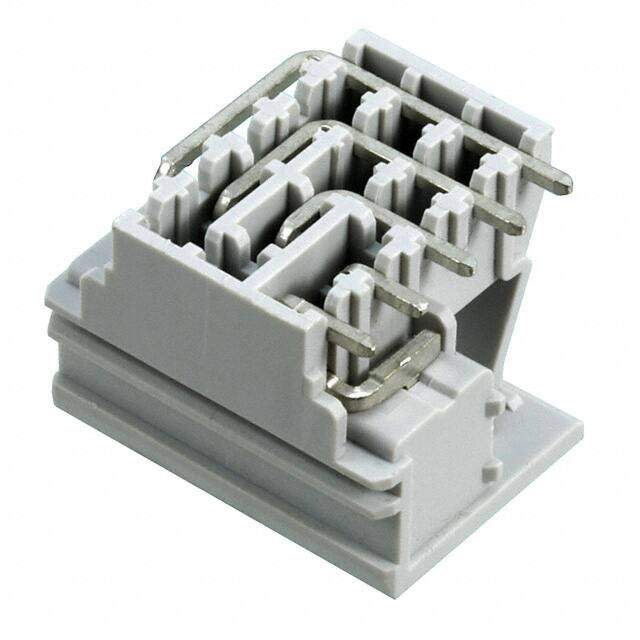

Pluggable Terminal Blocks 5 Pos 3.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $3
Unit Price: USD $3.0008
≥1 USD $3.0008
Inventory: 568
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 19.95mm
Length 14.55mm
Height 17.8mm
Technical
Header Orientation 90°, Right Angle
Number of Ways 5
Voltage - IEC 320V
Number of Decks 1
Current 8A
Number of Levels 1
Voltage 300V
Housing Color Grey
Termination Style Solder
Current Rating 8A
Reach Compliance Code unknown
Insulation Height 0.701 17.80mm
Pitch 0.138 3.50mm
Voltage - Rated 160V
Number of Rows 1
Color Gray
Number of Positions 5
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MCO
Published 2011
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Free Hanging
Contact Material Tin
Supply Chain
Factory Lead Time 4 Weeks
