2201788
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

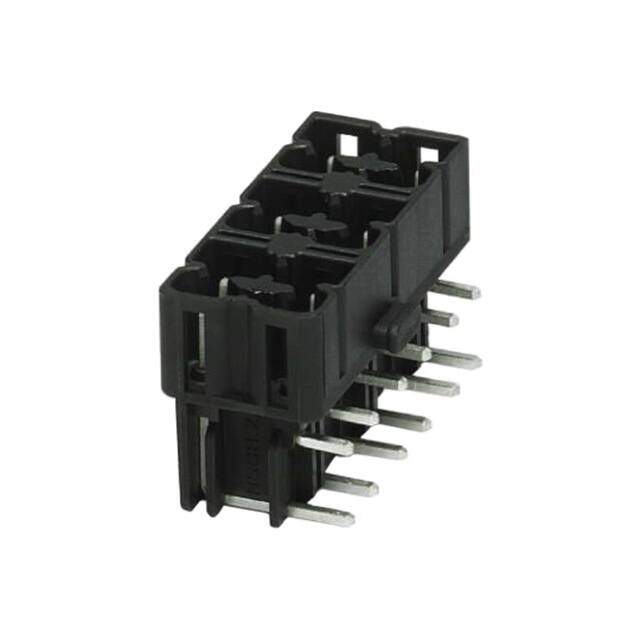

TERM BLOCK HDR 12POS 90DEG
PDF
/
Buying Options
Total Price: USD $6.03
Unit Price: USD $6.028
≥1 USD $6.028
Inventory: 103
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Edge, Through Hole
Mounting Type Board Edge, Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2014
Series COMBICON HSCH
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 12
Color Black
Termination Style Solder
Contact Tail Length 0.150 3.81mm
Number of Levels 2
Contact Mating Finish Tin
Voltage - IEC 600V
Positions Per Level 6
Header Orientation 90°, Right Angle
Current - IEC 8A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
