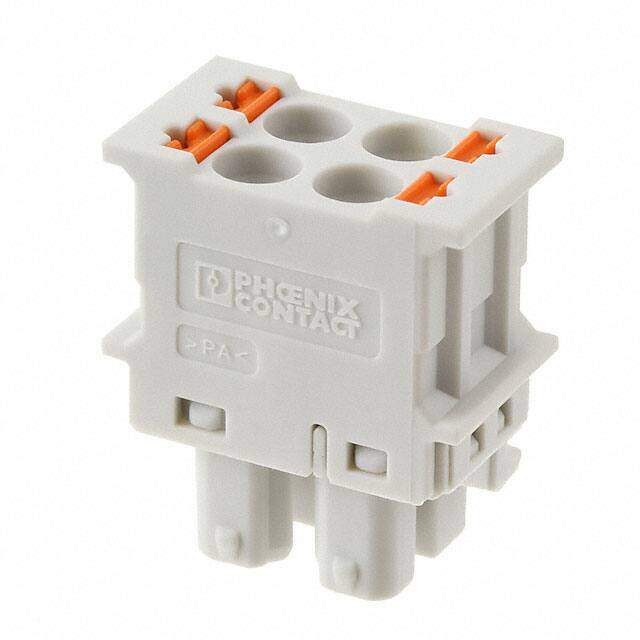

2201780 image
Favorite
2201780 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 4POS STR 5MM
PDF
/
Buying Options
Total Price: USD $2.95
Unit Price: USD $2.948
≥1 USD $2.948
Inventory: 113
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Number of Positions Per Level 2
Current - IEC 8A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Positions Per Level 2
Voltage - IEC 600V
Wire Gauge or Range - AWG 16-24 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 24 AWG
Number of Levels 2
Termination Style Screwless - Push-In Spring
Insulation Height 0.429 10.90mm
Pitch 0.197 5.00mm
Color Gray
Number of Positions 4
Type Plug, Female Sockets
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series COMBICON HSCP
Published 2014
Packaging Bulk

Physical

Housing Material Polyamide (PA), Nylon
Number of Pins 4
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
