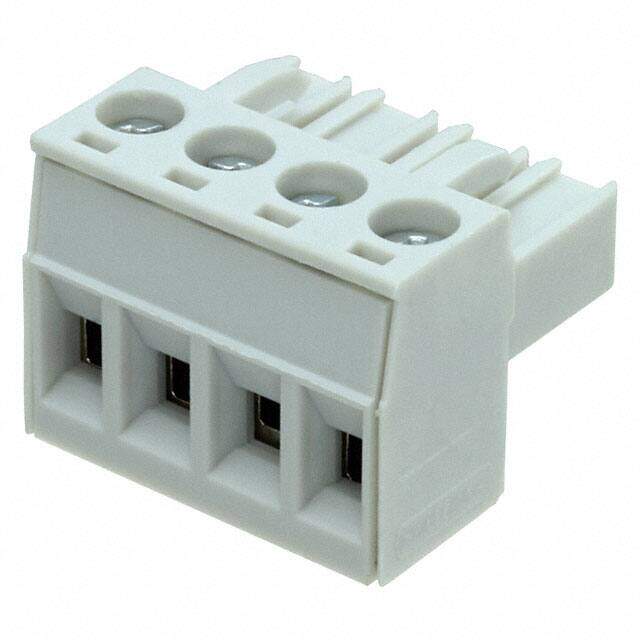

2200332 image
Favorite
2200332 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 4 Pos 5mm pitch Plug 24-12 AWG Screw
PDF
/
Buying Options
Total Price: USD $4.82
Unit Price: USD $4.823
≥1 USD $4.823
≥10 USD $4.55
≥100 USD $4.29245
Inventory: 1083
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Screw Size M3
Number of Positions Per Level 4
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-30 AWG
Voltage - UL 300V
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 16A
Number of Levels 1
Voltage 300V
Housing Color Grey
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Reach Compliance Code not_compliant
Insulation Height 0.591 15.00mm
Pitch 0.197 5.00mm
Voltage - Rated 250V
Gender Female
Color Gray
Type Plug, Female Sockets
Connector Type Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Retention Latches (Non-Wire Side)
Series COMBICON MSTBT
Published 2013
Packaging Bulk

Physical

Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
