2200329
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

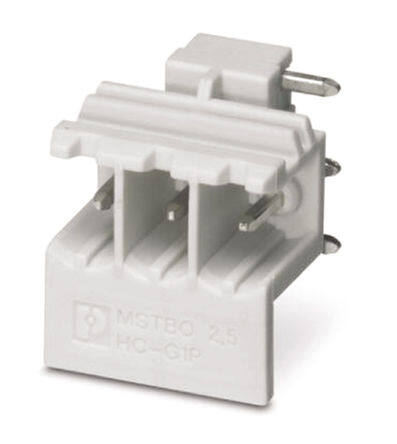

TERM BLOCK HDR 3POS 90DEG 5MM
PDF
/
Inventory: 8571
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Silver
Mount Free Hanging
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2013
Series COMBICON MSTBO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (2 Side)
Color Gray
Voltage - Rated 400V
Pitch 0.197 5.00mm
Insulation Height 0.709 18.00mm
Current Rating 16A
Termination Style Solder
Housing Color Grey
Voltage 300V
Number of Levels 1
Current 15A
Voltage - UL 300V
Header Orientation 90°, Right Angle
Current - IEC 16A
Number of Positions Per Level 3
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
