2200326
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

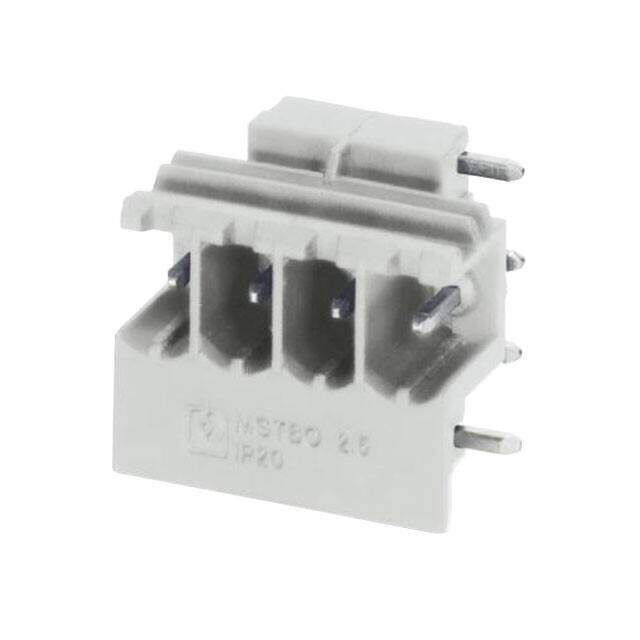

Terminal block; PCB; Header; Male Pins; Shrouded (2 Side); 4 position; 16A; 320V; Solder
PDF
/
Buying Options
Total Price: USD $3.16
Unit Price: USD $3.1592
≥1 USD $3.1592
≥10 USD $3.07648
≥100 USD $2.87496
≥500 USD $2.645016
≥1000 USD $2.443725
≥3000 USD $2.328726
Inventory: 183
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Silver
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2015
Series COMBICON MSTBO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 4
Color Gray
Voltage - Rated 400V
Pitch 0.197 5.00mm
Current Rating 16A
Termination Style Solder
Housing Color Grey
Number of Levels 1
Voltage - UL 300V
Current - UL 15A
Voltage - IEC 320V
Header Orientation 90°, Right Angle
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
