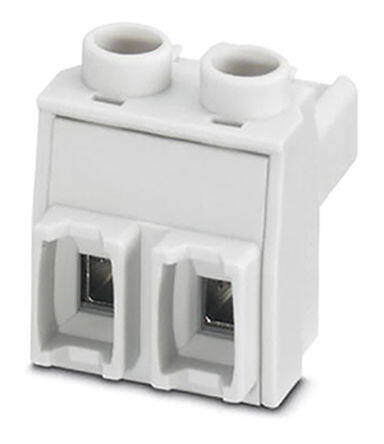

2199757 image
Favorite
2199757 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 2 Pos 7.25mm pitch Plug 24-12 AWG Screw
PDF
/
Buying Options
Total Price: USD $3.65
Unit Price: USD $3.647846
≥1 USD $3.647846
≥10 USD $3.44136
≥100 USD $3.246571
≥500 USD $3.062804
≥1000 USD $2.889441
Inventory: 6970
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Screw Size M3
Wire Strip Length 8mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 1kV
Wire Gauge or Range - AWG 12-24 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Current 16A
Number of Levels 1
Voltage 600V
Housing Color Grey
Termination Style Screw - Rising Cage Clamp
Current Rating 16A
Reach Compliance Code not_compliant
Insulation Height 0.677 17.20mm
Pitch 0.285 7.25mm
Voltage - Rated 1kV
Color Gray
Number of Positions 2
Type Plug, Female Sockets
Connector Type Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
Series COMBICON GMSTBT
Published 2011
Packaging Bulk

Physical

Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
