2199553
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

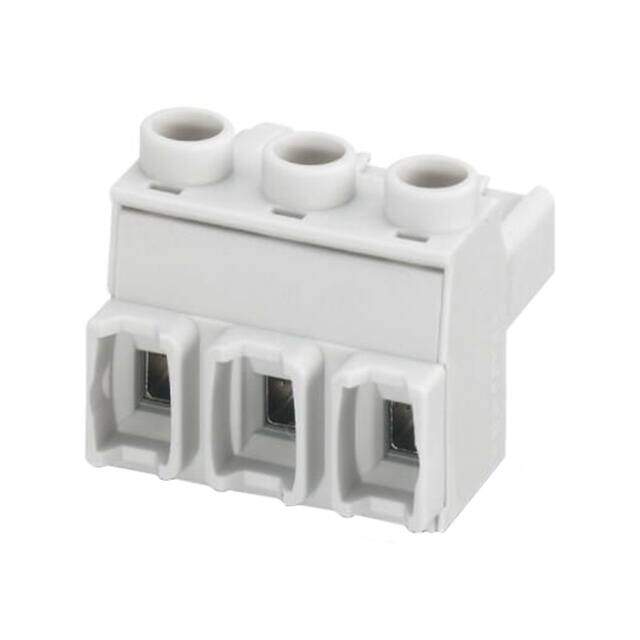

TERM BLOCK PLUG 3POS STR 7.25MM
PDF
/
Buying Options
Total Price: USD $5.03
Unit Price: USD $5.0336
≥1 USD $5.0336
≥10 USD $4.89808
≥100 USD $4.57776
≥500 USD $4.211592
≥1000 USD $3.891114
≥3000 USD $3.708003
Inventory: 161
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2013
Series COMBICON GMSTBT
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Type Plug, Female Sockets
Number of Positions 3
Color Gray
Pitch 0.285 7.25mm
Insulation Height 0.677 17.20mm
Reach Compliance Code not_compliant
Termination Style Screw - Rising Cage Clamp
Housing Color Grey
Voltage 600V
Number of Levels 1
Current 16A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge or Range - AWG 12-24 AWG
Voltage - IEC 1kV
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 8mm
Screw Size M3
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
