1999026
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

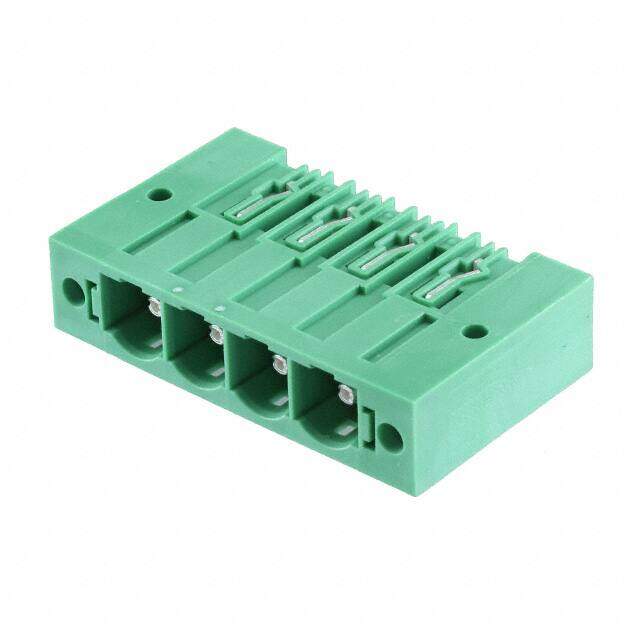

Conn Wire to Board HDR 4 POS 10.16mm Solder RA Thru-Hole
PDF
/
Buying Options
Total Price: USD $11.06
Unit Price: USD $11.0616
≥1 USD $11.0616
≥10 USD $10.7624
≥100 USD $10.0584
≥500 USD $9.253728
≥1000 USD $8.549658
≥3000 USD $8.147339
Inventory: 128
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Silver
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 21.090004g
Technical
Packaging Bulk
Published 2011
Series COMBICON PC
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Color Green
Number of Rows 1
Voltage - Rated 1kV
Pitch 0.400 10.16mm
Orientation Right Angle
Depth 34mm
Insulation Height 0.528 13.40mm
Current Rating 76A
Termination Style Solder
Voltage 600V
Contact Tail Length 0.157 4.00mm
Max Current Rating 76A
Number of Levels 1
Current 5A
Voltage - UL 300V
Number of Decks 1
Current - UL 66A
Number of Ways 4
Header Orientation 90°, Right Angle
Dimensions
Height 34mm
Length 58.4mm
Width 58.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
