1999013
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

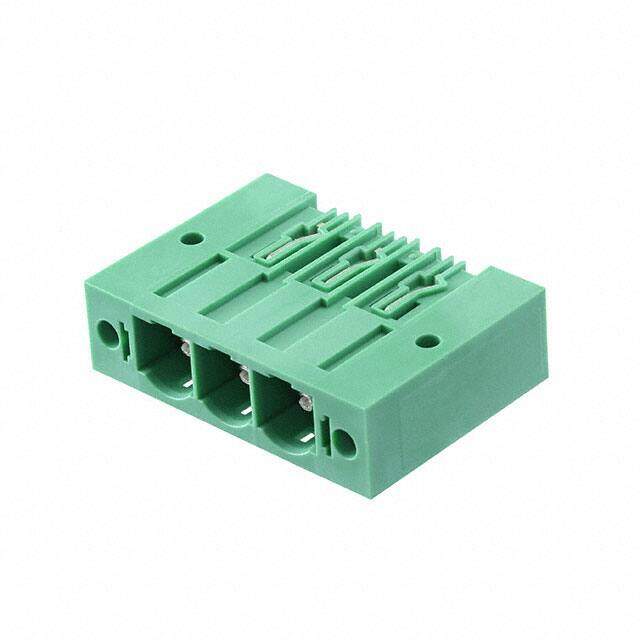

Pluggable Terminal Blocks 3 Pos 10.16mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $6.42
Unit Price: USD $6.4152
≥1 USD $6.4152
Inventory: 76
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 48.24mm
Length 48.24mm
Height 34mm
Technical
Header Orientation 90°, Right Angle
Number of Ways 3
Current - UL 66A
Number of Decks 1
Voltage - UL 300V
Current 5A
Number of Levels 1
Max Current Rating 76A
Contact Tail Length 0.157 4.00mm
Voltage 600V
Termination Style Solder
Current Rating 76A
Insulation Height 0.528 13.40mm
Depth 34mm
Orientation Right Angle
Pitch 0.400 10.16mm
Voltage - Rated 1kV
Number of Rows 1
Color Green
Number of Positions 3
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
Series COMBICON PC
Published 2011
Packaging Bulk
Physical
Weight 16.969996g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Silver
Supply Chain
Factory Lead Time 4 Weeks
