1998991
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

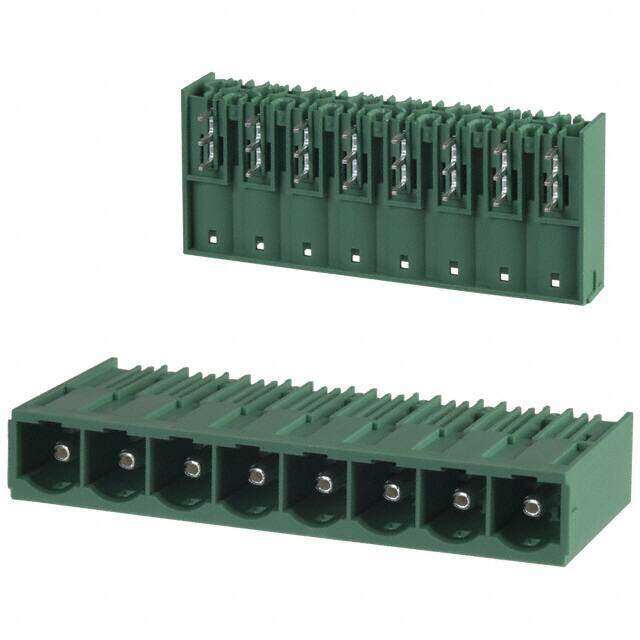

TERM BLOCK HDR 8POS 10.16MM
PDF
/
Buying Options
Total Price: USD $15.29
Unit Price: USD $15.2856
≥1 USD $15.2856
Inventory: 53
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 31.080007g
Technical
Packaging Bulk
Published 2005
Series COMBICON PC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 8
Color Green
Number of Rows 1
Voltage - Rated 1kV
Pitch 0.400 10.16mm
Insulation Height 0.528 13.40mm
Reach Compliance Code unknown
Current Rating 76A
Termination Style Solder
Voltage 600V
Contact Tail Length 0.157 4.00mm
Number of Levels 1
Current 5A
Contact Mating Finish Silver
Voltage - UL 300V
Number of Decks 1
Current - UL 66A
Number of Ways 8
Header Orientation 90°, Right Angle
Dimensions
Height 13.7mm
Width 32mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
