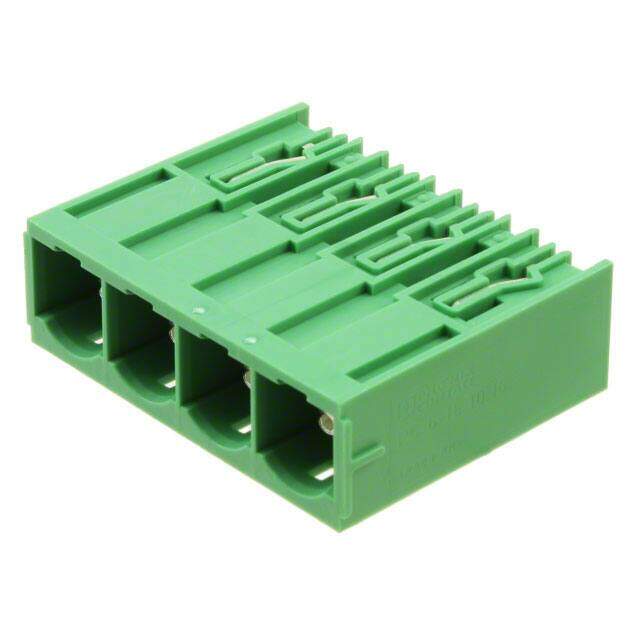

1998959
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 4POS 10.16MM
PDF
/
Buying Options
Total Price: USD $7.65
Unit Price: USD $7.6472
≥1 USD $7.6472
Inventory: 76
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Silver
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 16.640008g
Technical
Packaging Bulk
Published 2005
Series COMBICON PC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 1kV
Pitch 0.400 10.16mm
Orientation Right Angle
Depth 34mm
Insulation Height 0.528 13.40mm
Current Rating 76A
Termination Style Solder
Approval Agency CB, UL
Voltage 600V
Contact Tail Length 0.157 4.00mm
Max Current Rating 76A
Number of Levels 1
Current 5A
Number of Poles 4
Voltage - UL 300V
Number of Decks 1
Current - UL 66A
Number of Ways 4
Safety Approval CB; CUL; EAC; EN; UL; VDE; SEV
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR
Dimensions
Length 43.68mm
Width 32mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
