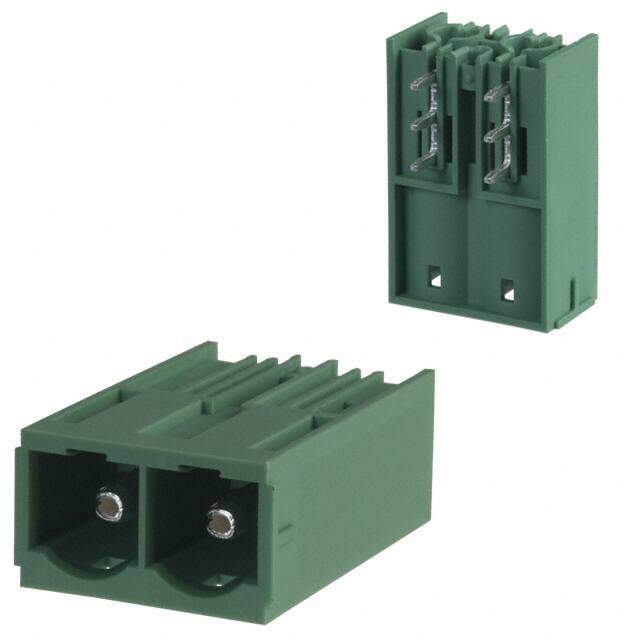

1998933 image
Favorite
1998933 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 2POS 10.16MM
PDF
/
Buying Options
Total Price: USD $5.12
Unit Price: USD $5.117011
≥1 USD $5.117011
≥10 USD $4.82737
≥100 USD $4.554122
≥500 USD $4.296339
≥1000 USD $4.053157
Inventory: 3942
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Plating Silver
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 8.18g

Technical

Packaging Bulk
Published 2007
Series COMBICON PC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Green
Number of Rows 1
Voltage - Rated 1kV
HTS Code 8536.69.40.40
Pitch 0.400 10.16mm
Orientation Right Angle
Depth 4.4mm
Insulation Height 0.528 13.40mm
Current Rating 76A
Termination Style Solder
Approval Agency CB, UL
Voltage 600V
Contact Tail Length 0.157 4.00mm
Max Current Rating 76A
Number of Levels 1
Current 5A
Number of Poles 2
Voltage - UL 300V
Number of Decks 1
Current - UL 66A
Number of Ways 2
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR

Dimensions

Height 23.36mm
Length 5mm
Width 34mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
